Special Designs

Custom Punching Cams

The Milfab Special Cam Unit can be custom-built to your specifications. This Special cam is available in six styles.

Key Features

The Special Design models can punch round, oblong, square, or rectangular holes and come standard with:

  • Inboard or Outboard body styles
  • Die spring for stripping
  • A2 punch material
  • Keyed punch on non-round holes

    • Customize It

    Customize your Milfab Cam Unit to suit your unique stamping conditions:

    • Metric punch, dowels, and screws
    • Self-lubricating bushing1
    • Offset trigger for 15-60o angles2
    • Short and long punch strokes2
    • Slug ejectors
    • M2 punch material
    • Extended range punch points3

    1. Standard on Retainer and Top Mount models
    2. Except on the Pos-Z-Cam Unit Models
    3. Contact us for details

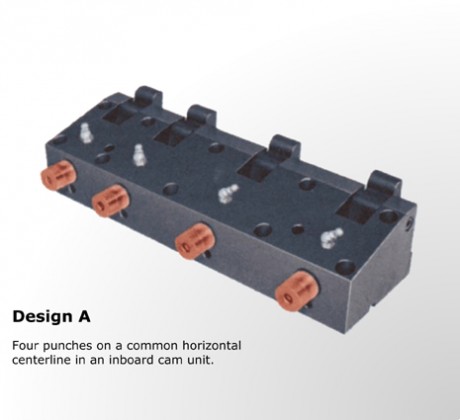

specials_content_1

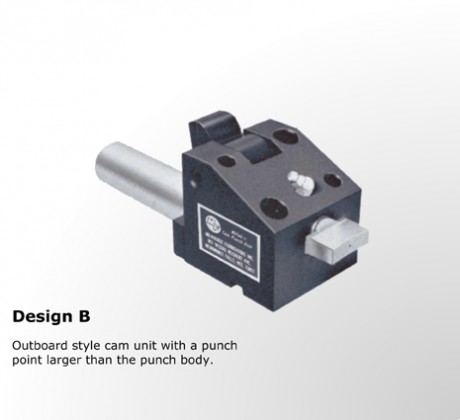

specials_content_2

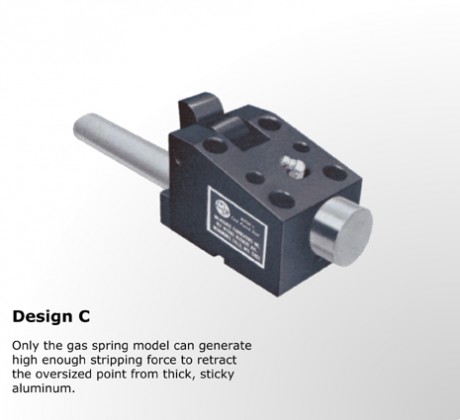

specials_content_3

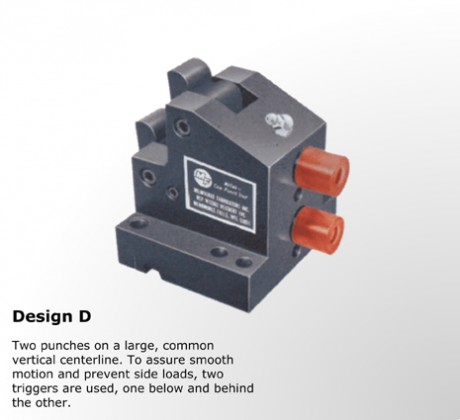

specials_content_4

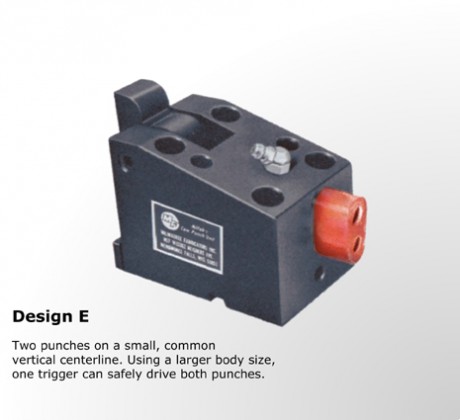

specials_content_5

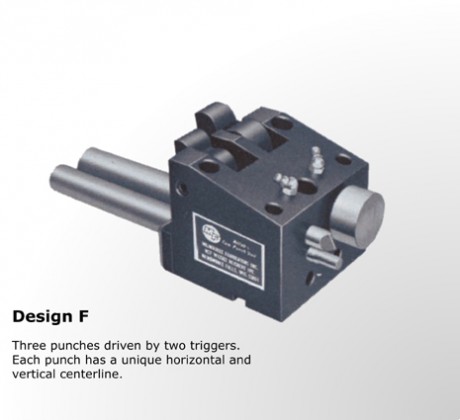

specials_content_6



Milfab Cams are made from case hardened steel to guarantee consistent performance and designed for long life.
